Salt Battery (Sodium Metal Chloride)
Salt Battery (Sodium Metal Chloride)
Sodium metal chloride is a solid-state salt battery with thermal insulation for low-temperature resistance. It operates from -40℃ to 65℃ without performance loss and is maintenance-free, requiring no HVAC cleaning.
Certified Safe
Non-flammable, non-explosive. CE/UL1973/UL9540A/RoHS certified. ABS/DNV approved.
Long Cycle Life
Float charge life 15~20 years 6000+ cycles @0.5C 80%DOD.
Environmentally Friendly
No conflict minerals, eco-friendly
100% Recyclable
Wide Operating Temperature Range
Batteries operate at ~40°C-65°C ambient temperature with no performance degradation, , no cooling system needed
High Energy Density
Energy density at cell level: 135 Wh/kg. Energy density at module level: 100 Wh/kg. Smaller footprint.
Free Maintenance
The battery module can tolerate 5%~10% cells short circuit for each string. Fully sealed, no need for water refilling, zero emissions.
Technical Advantages - Long Life
Cycle Life

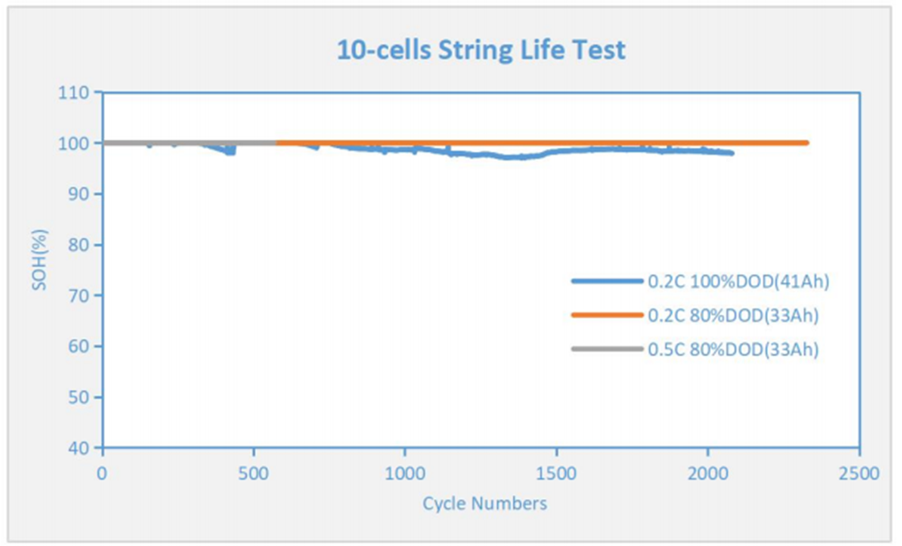

Cycle Life Performance - at Varying Loads
- Tested at 25°C, the battery shows a predicted cyce life of > 6000 cydes at 0.5C with > 80% depth of discharge (DOD) and > 80% state of health (SOH).

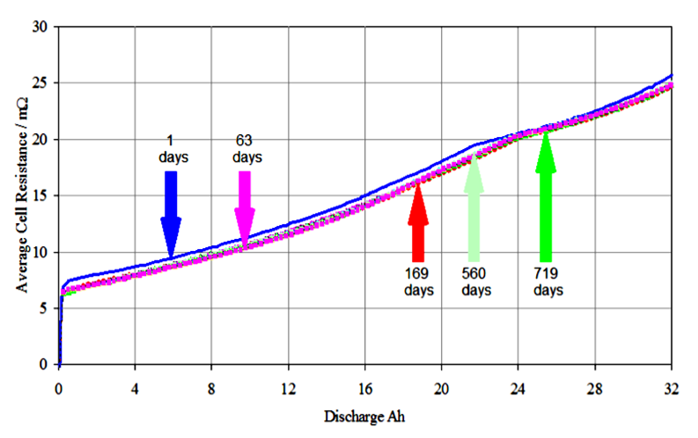

Floating-Charge Life (15-20 years)
(15-20 years)
- The solid-state salt battery uses B' alumina solid electrolyte with sealed electrodes. Sodium ion redox occurs only when electrically driven, ensuring no self-discharge, no side reactions and 100%. Coulombic efficiency (CE).
- With no organic matter or water, it avoids decomposition or water-splitting, enabling theoretically unlimited foat charge.
Technical Advantages - Wide Operating Temperature Range

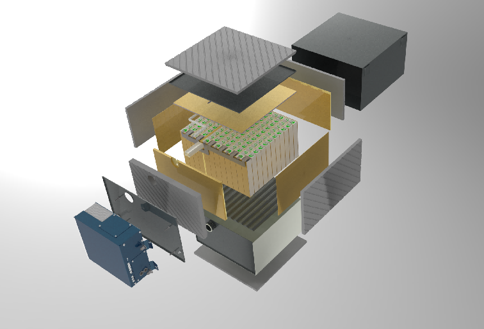

The Module Design of Solid-State Salt Battery
- Thermal insulation, resistant to low temperatures.
- High-temperature tolerant
- Batteries operate at -40°C ~ 65°C, with no degradation
- No HVAC needed (maintenance-free)

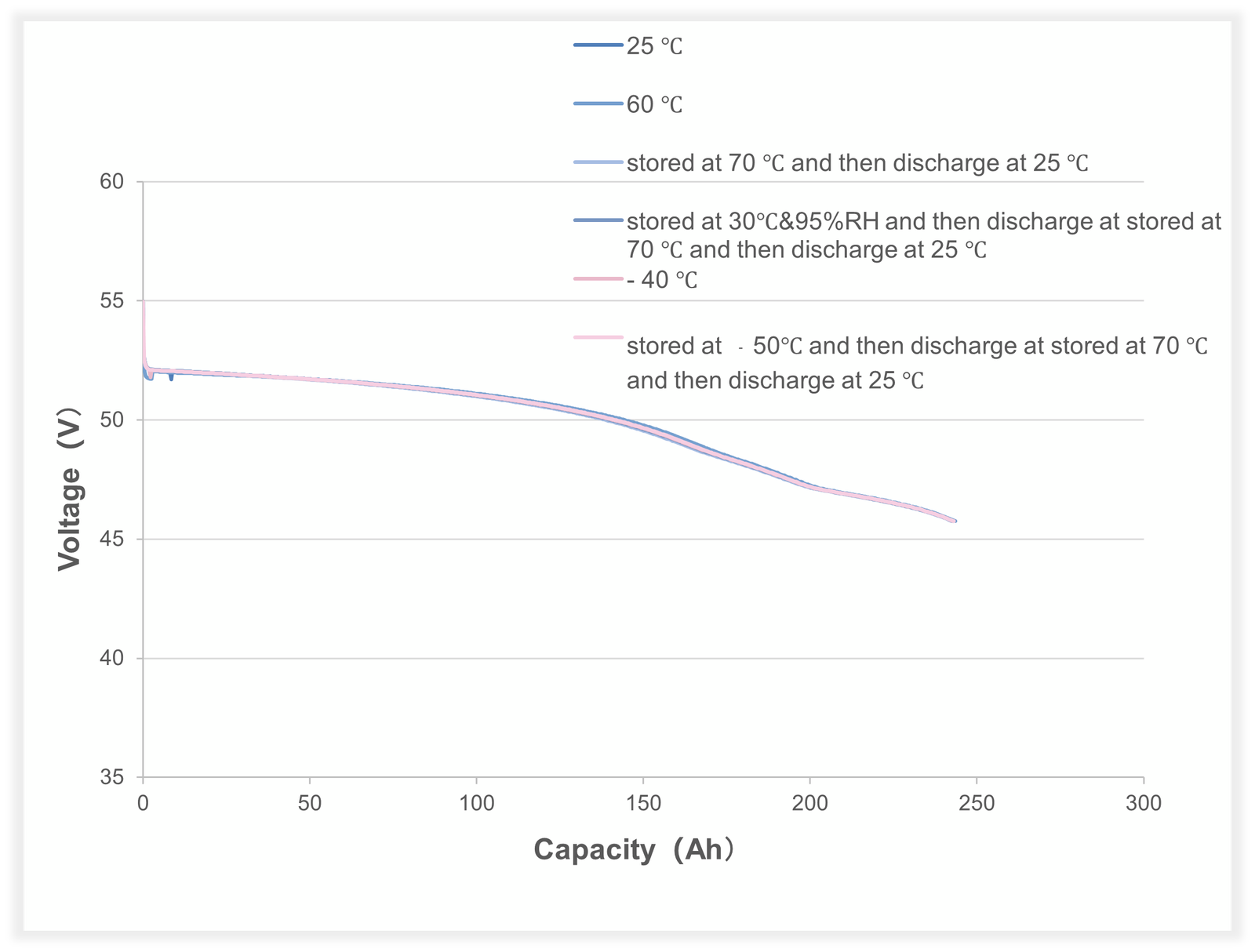

Discharging Curve at Different Ambient Temperature
